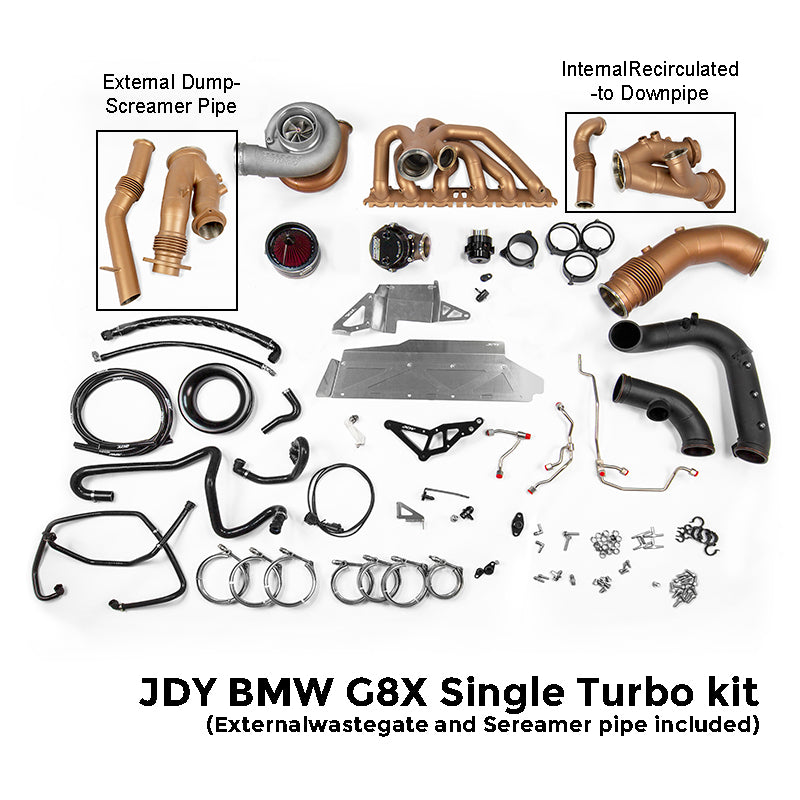

JDY BMW G8X S58 RHD 1000hp+ Top Mount Single Turbo Kit M2/M3/M4 - Inc Engine Catch Tank Kit

Engineered for ultimate performance, precision, and reliability.

Note: All kits are come with Engine Catch Tank Kit.

The JDY BMW G8X Single Turbo Kit ¨C RHD?is purpose-built for the BMW G8X M2, M3, and M4 platforms, delivering unmatched horsepower potential, efficiency, and durability. Designed with premium materials and verified by advanced simulation testing, this kit sets a new benchmark for single-turbo conversions.

Key Features & Technical Highlights

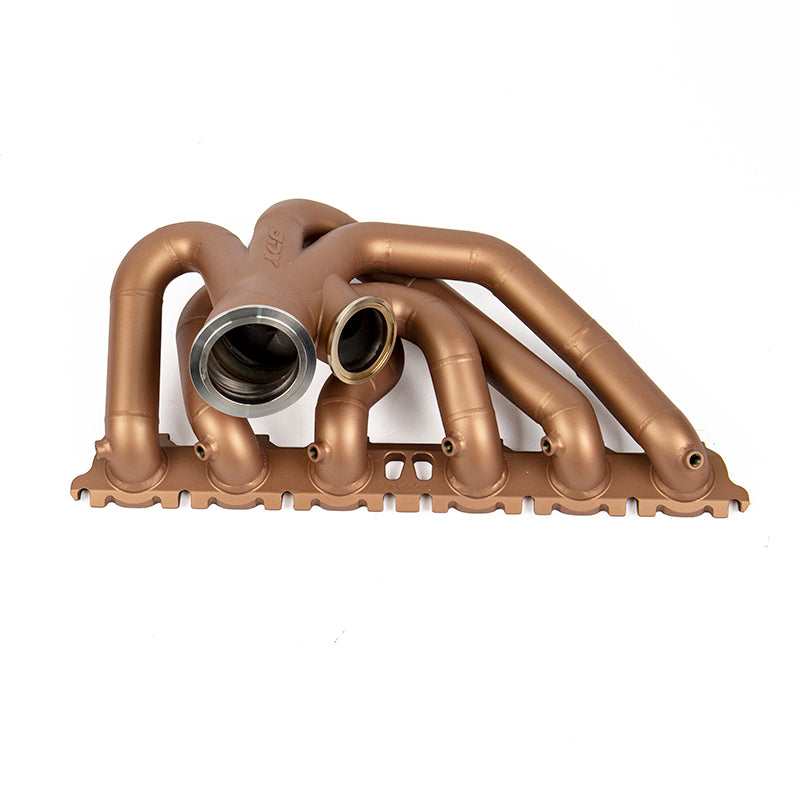

Exhaust Manifold (316 Stainless Steel)

• CNC-machined one-piece 6-port flange.

• Constructed from 42mm OD / 36mm ID and 48mm OD / 42mm ID 316 stainless tubing (3 mm wall).

• Two runner sizing options provide flexibility:

  • Small ID ¡ú faster spool and response.

  • Large ID ¡ú higher peak horsepower.

• Equal-length manifold design ensures balanced flow and improved turbo efficiency.

• Welded with Fronius TIG equipment, using dual-sided argon shielding for maximum strength and reliability.

• Verified via ANSYS fluid dynamics testing for optimized gas flow and durability.

Turbo Compatibility

• Supports all Precision Turbo T4 sized(H Cover 6870/7275/7675, Sportsman 6875/7480/8085) turbochargers.

• Note: 48mm version is available by custom order to match with Precision Turbo Sportsman Turbochsrgers.

Exhaust Sealing & Hardware

• Solid copper manifold gasket replaces OEM MLS for superior sealing.

• Upgraded reinforced V-band clamps for durability under extreme pressure and heat.

Downpipe (304 Stainless Steel)

• 4-inch OD, 2 mm wall stainless steel, dual-section A/B design for easier install.

• Fully welded inside and out, with dual-sided argon shielding.

• Compatible with OEM and aftermarket mid-pipes.

• Additional O2 bung for wideband sensors, with OEM O2 sensor provisions included.

Wastegate & Boost Control

• Single Precision Turbo 60mm dual-port wastegate.

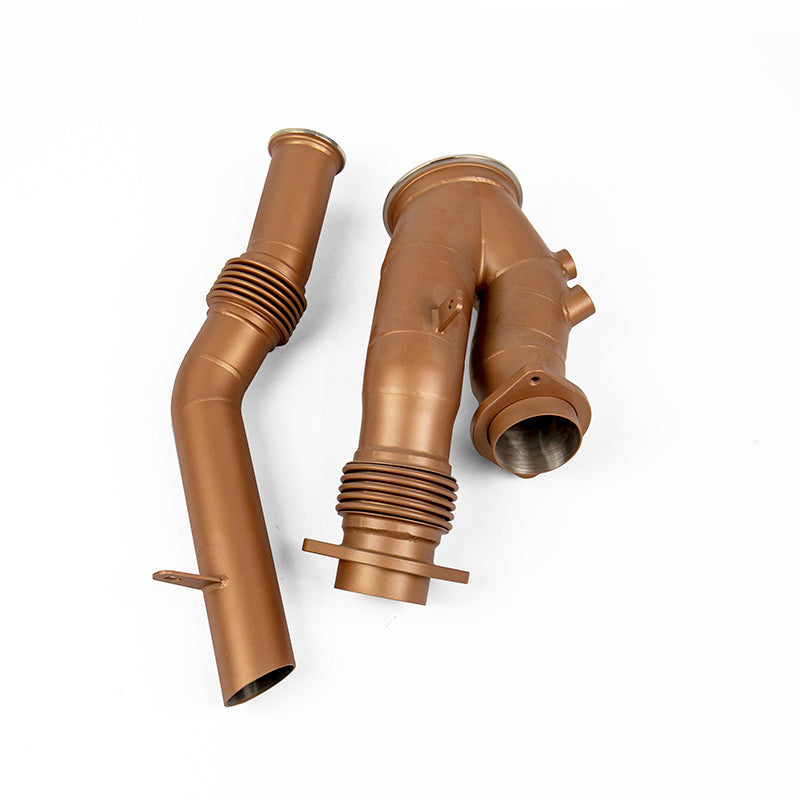

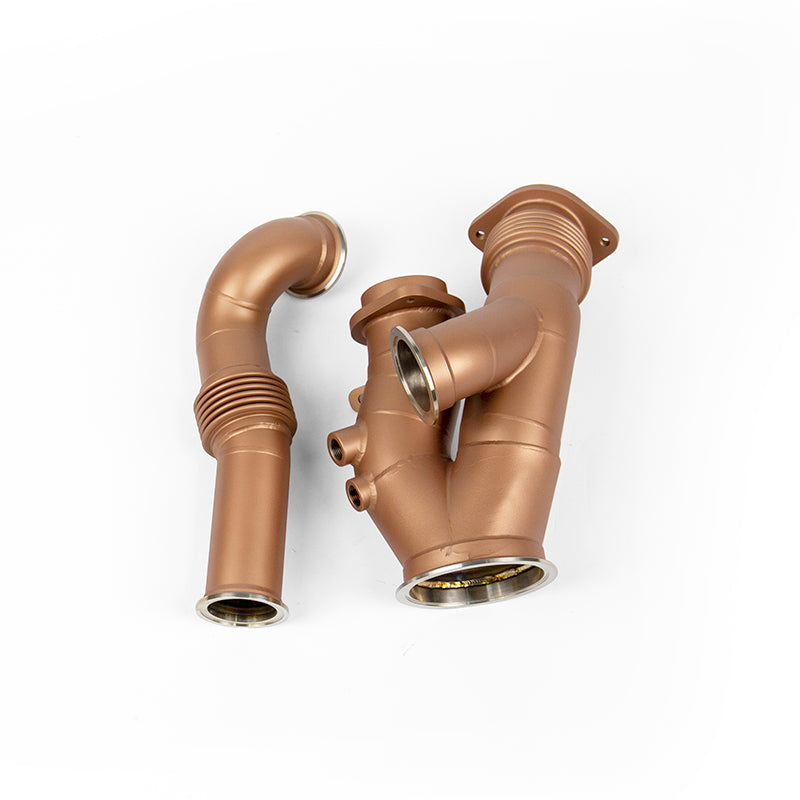

• Choice option of internal dump and external dump exhaust routing(Screamer pipe ).

Oil & Water Lines

• Feed line: Stainless steel AN4 swivel fittings, PTFE core, stainless braided exterior.

• Return line: Upgraded to PTFE core piping, with aluminum AN10 fittings, black hard-anodized finish.

• All lines covered with fire-resistant thermal sleeves.

• CNC-machined aluminum fittings and flanges, anodized black for strength and longevity.

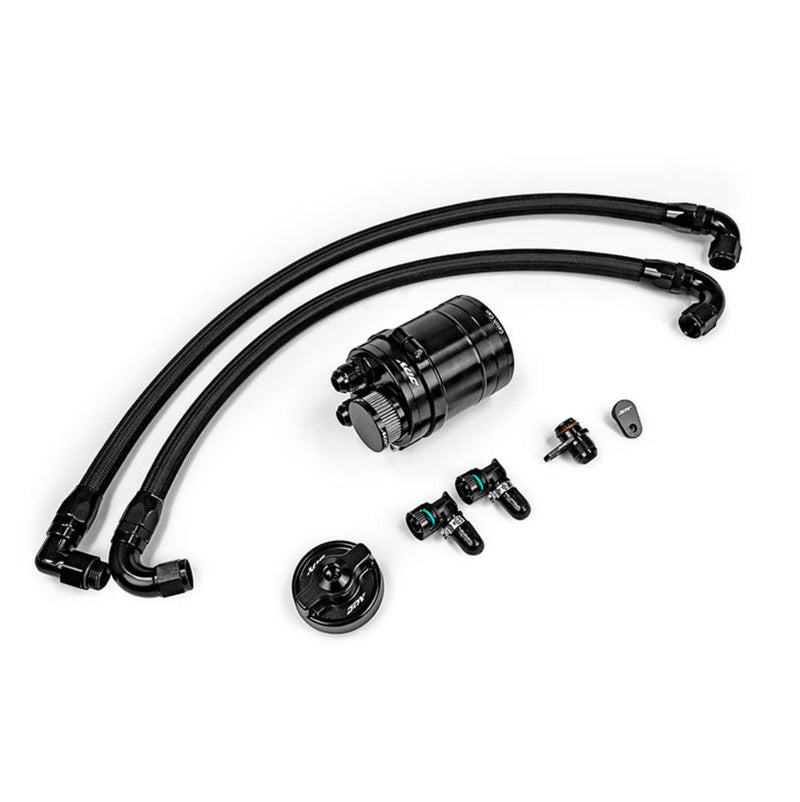

Coolant Relocation & Catch Can Integration

• CNC-machined aluminum coolant relocation bracket, specifically designed to also accommodate the JDY oil catch can system.

• Includes all necessary brackets, hoses, bolts, quick-connects, and wiring adapters for a seamless plug-and-play relocation.

• Aftermarket engine oil catch can is required for this kit. JDY¡¯s dedicated catch can system is available as an optional add-on.

Charge Piping & Clamps

• 3-inch aluminum charge pipes, fully TIG welded inside and out, hard-anodized finish.

• All connections feature JDY Fast-Release Wiggins Clamps ¨C no silicone couplers required.

• CNC-machined billet throttle body flange replaces OEM plastic unit.

Intake System

• CNC-machined aluminum velocity stack for optimized airflow.

• Includes performance cotton filter and optional silicone coupler for different setups.

Heat Management

• Custom 304 stainless steel heat shields protecting the plastic valve cover, firewall, and electrical connections.

• Exhaust housing, turbo manifold, downpipe, and wastegate dump pipes coated with?ceramic thermal barrier (same tech used in race pistons).

• Enhanced heat protection ensures long-term reliability of OEM wiring and components.

Fuel System Safety ¨C High Pressure Line Upgrade

• Proprietary JDY redesign reroutes OEM high-pressure fuel line away from turbine housing.

• Designed for?350 bar operating pressure (tested at 450 bar).

• Eliminates vapor lock risk from fuel overheating ¨C a unique JDY-exclusive safety feature.

Materials Overview

• Exhaust Manifold: 316 Stainless Steel

• Downpipe: 304 Stainless Steel

• Charge Piping: Aluminum Alloy (Hard-Anodized)

• Oil & Water Lines: PTFE Core with Stainless Braiding & Aluminum AN Fittings

• Coolant Hoses: Reinforced Silicone with Braided Mesh

• Heat Shields: 304 Stainless Steel?

Why Choose JDY?

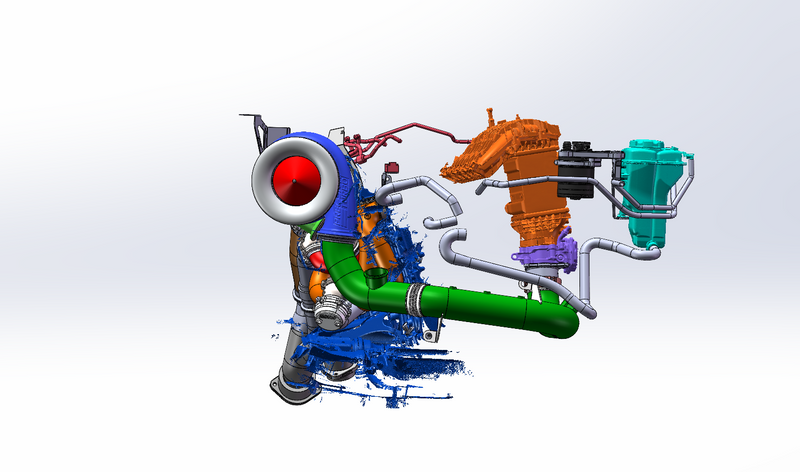

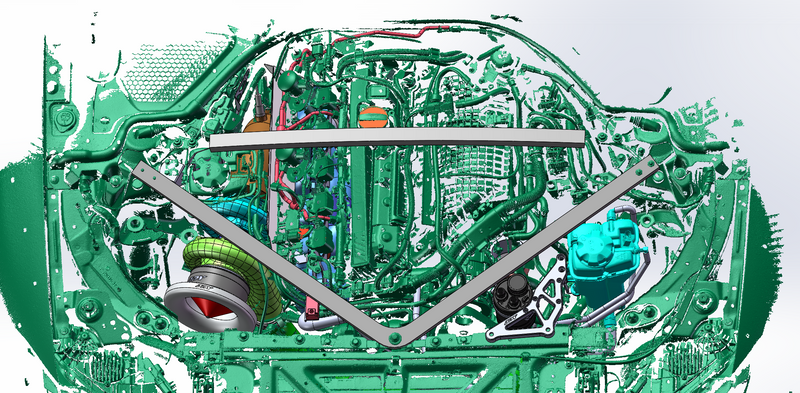

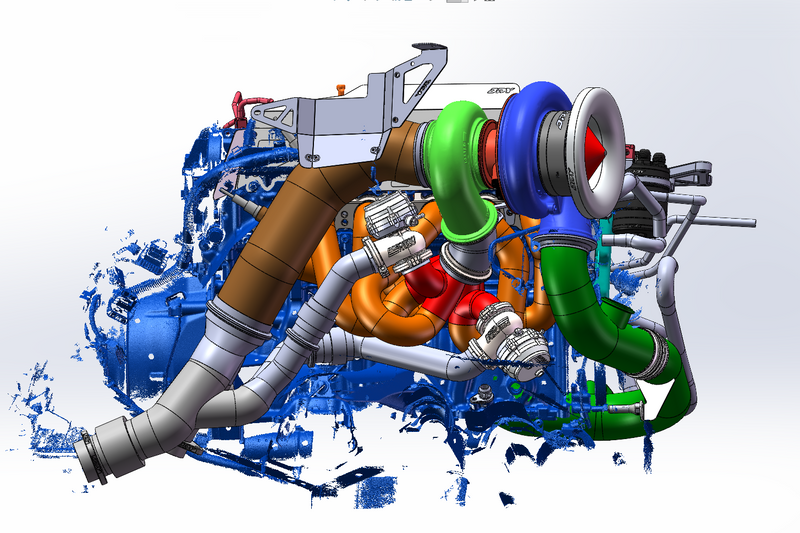

• CAD-designed and ANSYS fluid-tested for performance validation.

• Race-proven welding and fabrication standards.

• OEM-plus fitment: Designed for direct compatibility with factory and aftermarket systems.

• Unmatched power flexibility: Compatible with multiple Precision Turbo options for 800¨C1600+ HP builds.

• Reliability first: Every component engineered to withstand the extreme demands of both track and street use.
